Description
Universal

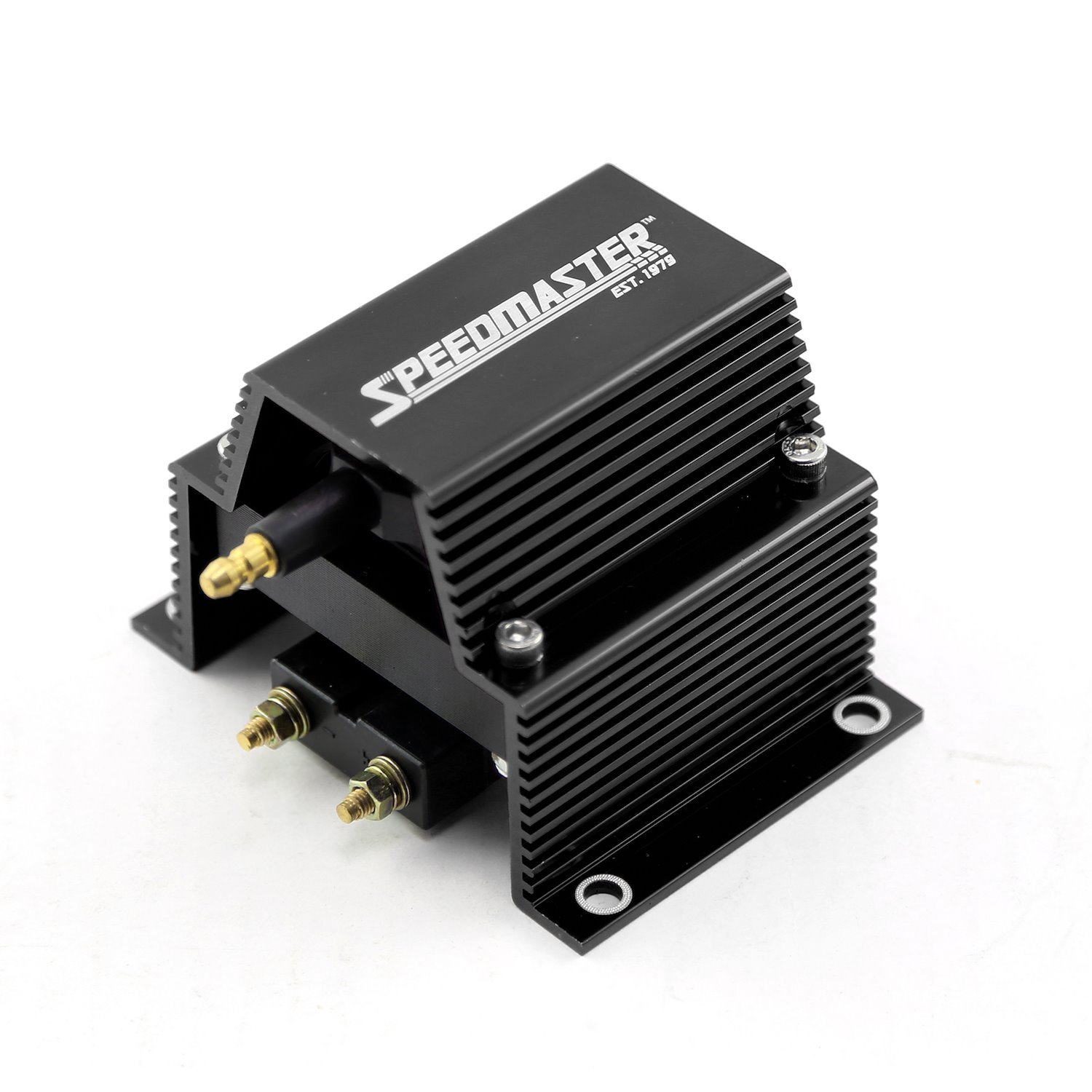

The Speedmaster high output technology coil produces up to 70% more spark energy than stock coils with outstanding reliability. This unit is recommended for street, strip, circle track, and drag racing. Internally the coil also has large gauge wire windings for maximum spark current and voltage with better heat dissipation at high rpm. High voltage arcing is minimized through screw-on connectors and a high tension tower. Ideal for use with capacitive discharge (CD) ignition systems and all Speedmaster High Output Ignitions.
Specifications:
Part Type Ignition Coil
Product Line Speedmaster High-Performance Ignition Coils
Ballast Resistor Included No
Coil Color Black
Coil Internal Construction Epoxy
Coil Shape Square
Coil Style E-core
Coil Wire Attachment Male/HEI
Coil Wire Included No
Inductance 6.6 mH
Maximum Voltage 60,000 V
Mounting Bracket Included No
Package Depth 3.75
Package Height 5.00
Package Width 5.00
Part Category Performance Parts
Part Fitment Semi Universal
Peak Current 280 mA
Primary Resistance 0.450 ohms
Quantity Sold individually
Secondary Resistance 3.80K ohms
Shipping Weight 2.21
Spark Duration 225 uS
Turns Ratio 100:1
Vendor Part Number PCE382.1030
